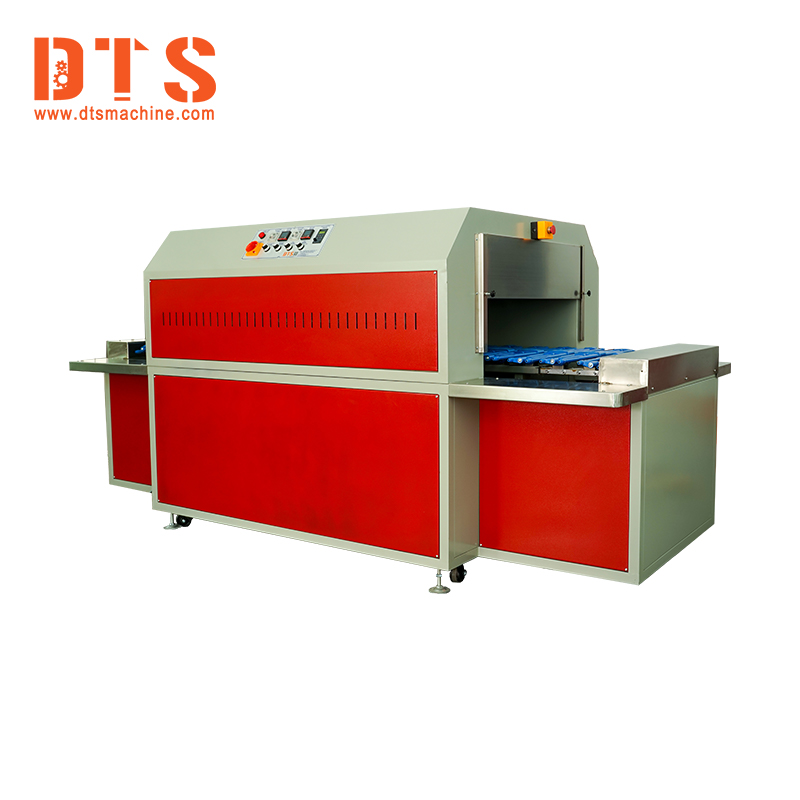

Function and characteristics of wet heat setting sulfur adding machine

A wet heat setting sulfur adding machine for shoes, in which two layers of horizontal long conveying layers are arranged in the heating chamber for conveying shoes in the horizontal direction, the feeding inlet and the discharging outlet are respectively adjacent to the end of the corresponding horizontal long conveying layer, and the height of the two adjacent horizontal long conveying layers in the upper and lower directions is set at intervals in the vertical direction, The end of the horizontal long conveying layer is provided with a lifting conveying mechanism for conveying shoes on the horizontal long conveying layer downward or upward to the horizontal long conveying layer at different heights. The lifting conveying mechanism is provided with a horizontal short conveying layer for conveying shoes in the horizontal direction. The edge of the horizontal short conveying layer is connected with the corresponding horizontal long conveying layer. The utility model has simple structure, On the premise of maintaining the production speed of the large heat setting machine of the existing technology and meeting the process requirements, the equipment has low cost, small volume, small space occupation, small floor area, high production efficiency and good shaping quality.
Main features of the wet heat setting sulfur feeder:

1. A box of shoes can be produced in 12 minutes, which is suitable for plank houses and small production lines.
2. It is a closed sulfur adding system with no leakage of heat energy and high efficiency and energy saving.
3. The double circulation wrinkle removing system is adopted for the damp heat setting sulfur adding machine, which has a good wrinkle removing effect and comprehensively improves the quality of shoes.
4. The advanced energy saving system of Germany is adopted, featuring stable performance, low noise, low energy consumption, 4-6 kilowatt hours of electricity, and more than 65% energy saving than the traditional heat setting machine.
5. The omnidirectional steam spray device has strong and sufficient steam, which can quickly soften the leather material and leave no water stains on the vamp. After heating and vacuuming, it has a good shaping effect and the shoes are very close to the last.
